Friday, November 13, 2009

PAF's First Block 52 F-16D Takes To The Skies

It may be recalled that on October 13 Lockheed Martin had rolled out the first of 18 new Block 50/52 F-16C/D M-MRCAs being produced for the Pakistan Air Force (PAF) in a ceremony that was attended, among others, by the PAF’s Chief of the Air Staff, Air Chief Marshal Rao Quamar Suleman. The aircraft order is designated as Peace Drive I and it raises the total number of F-16s ordered by Pakistan to date to 58. The PAF received its first of 40 Block 15 F-16A/Bs in 1982. The Peace Drive I order is for 12 F-16Cs and six F-16Ds, all powered by the Pratt & Whitney F100-PW-229 turbofans. The first aircraft--a tandem-seat F-16D--will be delivered to the US government (as agent for Pakistan in the Foreign Military Sales process) next month, with the remainder following in 2010. Joining them by late 2011 (through to 2016) will be the first of up to 70 AL-31FN turbofan-powered FC-20 single-engined M-MRCAs from China, which will be ordered in two successive batches, with the first batch comprising 36 single-seaters and four tandem-seaters, along with a related weapons package that will include PGMs like LT-2, LT-3, LS-6, and FT-1/2/3/5 guided-bombs, and YJ-99 supersonic anti-radiation missiles. The FC-20 will also be capable of carrying two Ra'ad 350km-range air-launched subsonic cruise missiles.—Prasun K. Sengupta

Sunday, November 8, 2009

M-SAMs of China, Pakistan & India Detailed + Spotlight on HQ-12/KS-1A

Southwest of Kunming, one can find the latest evidence of the ongoing modernisation of the Chinese PLA’s air defence network. With the large amount of efforts underway to modernise the air defence network through the inclusion of long-range strategic SAM systems like the S-300PMU1, S-300PMU2 and HQ-9, the appearance of a cheaper, short-range complement designed to replace the HQ-2 and supplement the long-range assets is a logical development. The KS-1A can serve as a close-in area air defence system to complement the more advanced systems, as well as performing as a gapfiller to preclude the need for additional, expensive strategic SAM systems. The KS-1A represents the current configuration of the KS-1 SAM system. The KS-1 was developed in the 1980s as a replacement for the HQ-61 SAM system. Due to reasons which have not been publicly disclosed at this time, the KS-1 did not enter Chinese military service when development was completed in 1994. A likely reason was the poor manoeuvring capability of the missile. It could only engage targets with a 5g manoeuvring capability, making the KS-1 largely ineffective for defending against new-generation combat aircraft.

The PRC’s 2nd Aerospace Academy, now known as China Academy of Defence Technology, or CADT, (also known as the China Changfeng Mechanics & Electronics Technology Academy) of the 7th Ministry of Machinery Industry (now known as CASIC), in 1981 began developing a 57.5km-range tactical endo-atmospheric interceptor missile called the KS-1, which was meant to intercept incoming tactical ballistic missiles. The first test-firing of the missile took place in 1989 and the KS-1 system was first publicly revealed at Le Bourget during the 1991 Paris Air Show. All R & D work on the KS-1 was concluded in 1994, following which series-production of the M-SAM rounds began at the Gui Yang-based Guizhou Aerospace Industry Company Ltd. The KS-1’s TWS-312 engagement control centre (ECC) and its SJ-231 missile guidance system (that includes the C-band HT-233 active phased-array tracking-cum-engagement radar) were series-produced by the Xi’an-based Shaanxi Tianhe Industry Group. The latter two were mounted on TAS-5380 8 x 8 heavy-duty cross-country vehicles. The KS-1 employs a single-chamber dual thrust, solid-fuelled missile, weighing 886kg, and comes equipped with a track-via-missile (TVM) guidance system under which mid-course correction commands are transmitted to the guidance system from the ECC. The target acquisition system in the missile acquires the target in the terminal phase of flight and transmits the data using the TVM down-link via the HT-233 radar to the ECC for final course-correction calculations. The course-correction commands are then transmitted to the missile via a missile track command up-link. A control actuator system is located at the tail end of the missile behind the propulsion system. The HT-233 radar carries out airspace search, target detection, target track, identification, missile tracking, missile guidance and electronic counter-countermeasures (ECCM) functions. The HT-233 radar is automatically controlled by a digital weapons control computer housed within the ECC, and cable link is used to connect the SJ-231 to the TWS-312, which is the only manned station in a KS-1 Battery and it provides the human interface for control of all automated functions. The ECC communicates with all KS-1 Fire Units as well as with higher-echelon command headquarters, and has on board an Air Situation Display console and Tracking Display console that adopt customised BITE technologies, and have embedded simulated training software for engaging more than 100 airborne targets in various flight profiles, all of which can be used for operational training in peacetime. HT-233 radar, operating in the 300MHz bandwidth, has a detection range of 120km and tracking range of 90km. The radar antenna has 4,000 active ferrite phase shifters. It can detect targets in azimuth (360°) and elevation (0° to 65°). It can track some 100 airborne targets and can simultaneously engage more than 50 targets when used in conjunction with a Brigade-level ECC (which can handle automatic command-and-control of three subordinate KS-1 Regiments). In some cases a KS-1 Fire Unit receives early warning of enemy ballistic missile launch, along with direction and time-of-arrival data. Target engagement can be carried out by the HT-233 in manual, semi-automatic or automatic mode. When the decision has been made to engage the target, the ECC selects the Launch Battery or Batteries to be used and pre-launch data is transmitted to the selected missile via microwave line-of-sight data links. The target position data is downloaded to the missile to aid the missile’s target acquisition. After launch, the missile is acquired by the HT-233 radar. The missile’s track command up-link and the TVM down-link between the missile and the HT-233 allows the missile’s flight to be monitored and provides missile guidance commands from the ECC’s weapons control computer. As the missile approaches the target, the TVM guidance system on the missile is activated and the missile is steered toward the target. As the missile’s closest approach to the missile is reached (50 metres), a proximity fuze detonates the directional high-explosive blast fragmentation warhead. The missile’s engagement zone is between 300 metres and 27km in terms of altitude, while it has a slant range of between 7km and 50km, and a maximum speed of 1,200 metres/second. The KS-1 Fire Unit includes a 6 x 6 TAS-270A vehicle housing a slewable oblique under-rail suspension dual launcher carrying two missile rounds. The Fire Unit can deploy in three ways: the vehicle mode, the trailer mode, and the stand-alone mode. It carries two ready-to-fire missiles, is capable of remote operations, and is 360-degree slewable.

By the mid-1990s the 2nd Aerospace Academy began R & D work on developing two distinct derivatives of the KS-1: the ground-based 58km-range KS-1A variant that was to be optimised for use against manned combat aircraft and cruise missiles; and the 80km-range shipborne, vertically-launched HQ-9 long-range surface-to-air missile (LR-SAM) system (using the HQF-91 missile round) that was optimised for use against both manned combat aircraft and supersonic anti-ship cruise missiles, as well as tactical ballistic missiles. To make the KS-1A a cost-effective yet lethal M-SAM, it was decided to do away with the TVM guidance mechanism and instead, adopt the command-link guidance approach. Under this, the HT-233 radar (using an integral IFF transponder, a spectrally pure TWT transmitter, two-stage superheterodyne correlation receiver for channels, high-speed digital signals processor, real-time engagement management computer, secure guidance command up-link, and a radar data processor) would accurately track both the airborne target and launched missile, while a flight/trajectory control computer inside the SJ-231 would calculate the required flight-path corrections for the missile, which would then be transmitted via a data-link to the missile’s on-board digital flight control system (including a digital autopilot, telemetry command receiver and decoder, and a transponder) for bringing the missile as close as 50 metres to the targetted aircraft, following which the proximity fuze will trigger the HE fragmentation warhead. Presently, one KS-1A Battery can simultaneously engage three targets with missiles, and comprises 36 missiles, one SJ-231 ECC station and one HT-233 radar (for 3-D target search, detection, acquisition, identification and engagement; clutter rejection and missile guidance), one optional YLC-18 S-band 3-D mobile tactical air defence radar (with a 250km-range), three power supply vehicles, six 6 x 6 missile launcher vehicles (that are dispersed to launch sites located up to 10km away from each other, with the launch platforms being microprocessor-driven and controlled through an electro-mechanical servo system), six missile transporter-loading vehicles, one tractor, one missile-test vehicle, three missile transport vehicles, one electronics maintenance vehicle, two tools vehicles, and one power supply vehicle. When networked with a Brigade-level ECC, a kill probability of not less than 90% of small-formation airborne targets (less than four aircraft whose airspeed is not greater than 700metres/second) can be achieved (when ripple-firing two missiles against a single target), and more than 95% when the target’s speed is not greater than 560 metres/second and the intruding airborne target density is not greater than four aircraft a minute. In terms of performance, therefore, the KS-1A is in the same league as (but much cheaper than) Raytheon’s RIM-162 Evolved Sea Sparrow Missile (ESSM), while being superior to the 45km-range BUK-M2E of Russia’s Almaz Antey Concern. The improved KS-1A was publicly revealed at the Zhuhai Air Show in 2000. It is a command-guided missile with a range of 57.5km, capable of intercepting targets at altitudes of up to 27,000 metres. One identified KS-1A site is found southwest of Kunming in southern China at the following coordinates: 24 54’ 51.79” N 102 33’ 47.22” E. The KS-1A SAM system is deployed at a prepared site similar in layout to those constructed for the S-300PMU1 and HQ-9 SAM systems. A raised berm in the centre of the site is present to mount the SJ-231 engagement radar station and the TWS-312 Air Defence Command System’s Battery Control Centre engagement radar. Surrounding that berm are six square pads, each containing a single TEL. There are various structures present, ostensibly to house support equipment, power generation vehicles, and command-and-control facilities. The visible components appear to be connected via cables, potentially providing the system with a measure of communications security. The KS-1A enjoys a 15km increase in effective range over the HQ-61, and as such represents a relatively significant improvement in air defence capability.

The KS-1A M-SAM is extremely flexible in employment and deployment. It is best employed as a Regiment. However, its three Batteries can be employed for independent tasks if required. This is called the Autonomous Mode. The three Batteries can be deployed in various geometric formations, as suited to the vulnerable area/point being protected and the extent desired to be sanitised from hostile airborne threats. Similarly, the Battery can deploy its launchers in a way as to be optimal for target engagement as the threat is perceived ab-initio, or as it evolves during combat. Cross-country Mobility enables quick re-deployment and the radar-based sensors can be so positioned as to achieve the optimum kill zone. The KS-1A Batteries can protect static, semi-mobile as well as mobile assets. These may be critical national assets in the hinterland or large mobile armoured formations (either Integrated Brigade Combat teams or Armoured Divisions) thrusting into enemy territory. The Regimental ECC and the Battery-level ECCs must be deployed in a manner, which will provide a clear line-of-sight (LOS) to the Batteries, which may be placed up to a maximum of 30km away from each other. This requires the mast of the microwave communications antenna (on the radars, ECCs and Firing Units) to be raised to the required appropriate height. The YLC-18 radar must be sited while keeping in mind the screening constraints. The radar’s antenna must be aligned accurately by knowing its position and orientation with respect to the north. This information is made available to the YLC-18’s mission computer from a fibre-optic gyro-based autonomous land navigation system (ALNS). Care should be taken to align the YLC-18’s antenna with the ALNS and the system must be calibrated. The levelling of the YLC-18’s antenna needs to be accurate in order to avoid any tilt, which would introduce a bias. The SJ-231 is also provided with ALNS to measure its latitude, longitude and orientation with respect to the true north. This information is required by both Battery-level ECC and the YLC-18’s mission computer. The M-SAM Firing Units operate automatically and are remotely controlled by the Battery-level ECC, which may be up to 1.5km away. Control is effected via microwave LOS radio or line-cable links. The YLC-18 automatically starts tracking targets at a distance of around 250km providing early warning to the KS-1A system and its operators. The target track information is transferred to Regimental ECC, which automatically classifies the targets. The three HT-233s start tracking targets around a range of 100km. This data too is transferred to Regimental ECC, which then performs multi-radar tracking and carries out track correlation and data fusion. Target position information is then sent back to the HT-233s, which use this information to acquire the prioritised targets with the help of the Battery-level ECC, which can engage a target(s) from the selected list at the earliest point of time, and is is assigned the target in real-time by the Regimental ECC. The availability of missiles and the health of the missiles are also taken into consideration during this process. Fresh targets are assigned as and when intercepts with assigned targets are completed. A single shot kill probability (SSKP) of 98% has already been achieved by the system taking into consideration various parameters of the sensors, guidance command, missile capabilities and kill zone computations. There are a number of possibilities for deploying the KS-1A in autonomous Battery-level mode and in Regimental-level mode for neutralising the threat profiles with optimally defined multi-target engagement scenarios. In the Regimental-level mode there are a number of proven configurations to defend vulnerable areas depending upon the nature of the expected threat pattern and characteristics of the threats. Similarly, up to four B batteries in autonomous mode can be deployed to defend vulnerable areas/points.

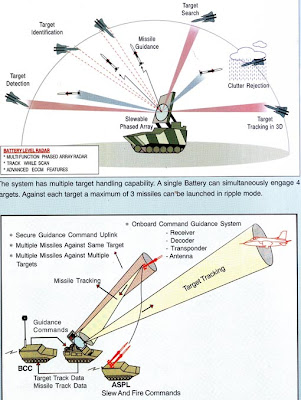

In all its deployment patterns, the KS-1A offers a multi-target and multi-directional area air defence capability. All its ground-based and airborne components are integrated in a plug-and-flight architecture under which the software-based integration of all hardware-based elements permits the autonomous management of various functions such as programmable surveillance, target detection, target acquisition, target identification and tracking, threat evaluation, threat prioritisation, interception assignment and target engagement. Depending on the operational scenario—whether to defend a vulnerable area or vulnerable point—the KS-1A’s operational deployment pattern can be selected from either of the three above-mentioned types. In all the three patterns, up to four KS-1A Batteries (with 48 ready-to-fire missiles and four SJ-231 stations) can function together seamlessly even when deployed over a wide area and are linked to a Regiment-level ECC by secure microwave line-of-sight data links as well as mobile troposcatter communications terminals. When an entire Regiment of KS-1A M-SAMs is deployed, use is made of a YLC-18 ‘gapfiller’ airspace surveillance radar to provide a single integrated airspace picture to the Regimental ECC. The YLC-18 and four SJ-231 stations can be networked with a Sector Operations Centre (SOC) via a DA-6 tactical internet controller using either underground fibre-optic links or land-mobile broadband, multi-channel, beyond line-of-sight, digital troposcatter communications terminals. This same type of systems architecture using the above-mentioned tools can be employed to develop an integrated, hierarchical air defence network that seamlessly integrates the M-SAM, E-SHORADS and VSHORADS into one monolithic guided-missile-based air defence system. To make the HT-233 radar virtually invulnerable to hostile electronic jamming, a number of ECCM features have been incorporated, including narrow transmit and receive beams, very low sidelobe antenna, automatic frequency selection mode, interference analysis and mapping, and randomness in frequency, space and time.--Prasun K. Sengupta

Monday, November 2, 2009

Unnecessary Fuss

It is the ultimate irony, isn't it? On one hand there's all kind of anti-China hysteria in the India-based mass-media and on the other hand, a MoD-owned defence PSU lke BEL is procuring CETC-built SEC-33 bulk encryptors off-the-shelf! But such encryptors are dual-use items that are procured commercially and many a time even the OEM (CETC) is unaware of the final export destinations of such encryptors. But as long as the encryptor's integral encryption chip is not pre-programmed (and the encryption software is locally installed by BEL in India), there is no operational risk whatsoever to the end-user as BEL is the sole custodian and designer of the encryption software's crypto keys (which is embedded by BEL within the encryption chip)—Prasun K. Sengupta

Saturday, October 31, 2009

Where Is The MiG-35?

No one from Russia, it seems, can give a convincing answer to this very simple question. Earlier last February during the Aero India 2009 exhibition, Mikhail Pogosyan, who presently wears two hats—Director-General of RAC-MiG and Director-General of Sukhoi Corp—had made two interesting revelations: one, that the MiG-35’s single-seat and tandem-seat variants will be rolled from the Nizhny Novgorod-based Sokol Aircraft Plant by August this year; and two, there would be maximum mission systems commonality, inclusive of the AESA radar, between the MiG-35 and the Fifth Generation Fighter Aircraft (FGFA) that will be co-developed by India’s Hindustan Aeronautics Ltd (HAL) and Russia’s United Aircraft Corp (UAC). Both these revelations have since been contradicted with the passage of time. The Indian Air Force (IAF) had expected the roll-out of the single-seat and tandem-seat versions of the MiG-35 latest by mid-October and be made available for a week-long phase of flight evaluations within India later this year, followed by a second round of evaluations (involving test-firings of precision-guided munitions) in Russia within the first quarter of next year. And as for systems commonality, especially pertaining to the AESA radar, it became evident last August that it will be the Zhuk-AE from Phazotron JSC that will go on board the MiG-35, while the FGFA will be equipped with a variant of the MIRES Sh-121 AESA-based multi-mode radar, which is now being developed by Tikhomirov NIIP. The Zhuk-AE AESA which has repeatedly been shown on board the MiG-29M2 No154 M-MRCA (built in 1990) since 2007 is now officially described as being a functional technology demonstrator containing 600 transmit/receive modules, while the definitive series-production variant of the Zhuk-AE will have 1,000 T/R modules. And the MiG-29M2 No154, which has deceptively been painted as the MiG-35 and been used in the past for giving joyrides to some India-based broadcast media journalists and a few IAF pilots, is now being described by RAC-MiG as just a ‘proof-of-concept’ demonstrator!

It has now emerged that RAC-MiG had built two prototypes of the shipborne MiG-29 as part of the contract to supply 12 MiG-29Ks and four MiG-29KUBs to the Indian Navy. These two prototypes—a tandem-seat MiG-29KUB No947 and a single-seat MiG-29K No941—made their maiden flights in January and June 2007, respectively. (By the way, these two prototypes were the first brand-new MiG-29s to be built by RAC-MiG after a gap of 15 years!) Following the conclusion of the flight certification and weapons qualification phases, the single-seat MiG-29K No941 was and is still being subjected to a modification programme aimed at deriving the definitive single-seat MiG-35. This perhaps explains why RAC-MiG has publicly displayed (during MAKS 2007 and MAKS 2009) the MiG-29KUB No947, but has never even revealed the existence of the Indian Navy-specific MiG-29K No941 to date. It is now believed that the Russian Air Force, as part of a Kremlin-initiated bailout package for debt-ridden RAC-MiG, will place an order for 24 MiG-35s by 2012, while the Russian Navy will procure 24 MiG-29K/KUBs in 2012 to replace the existing Su-33 shipborne combat aircraft.

According to RAC-MiG, the definitive MiG-35 will have larger wings to accommodate 10 underwing weapon stations, plus a belly-mounted station to house the Novator-built 3M-14AE Kalibr-A subsonic 290km-range air-to-ground land attack cruise missile. To make the MiG-35 a truly network-centric platform RAC-MiG has already initiated industrial participation negotiations with Israel’s SIBAT, plus avionics OEMs from Italy (Finmeccanica/Elettronica) and France (SAGEM for the Sigma-95 RLG-INS, which is also on board the Su-30MKI).—Prasun K. Sengupta
